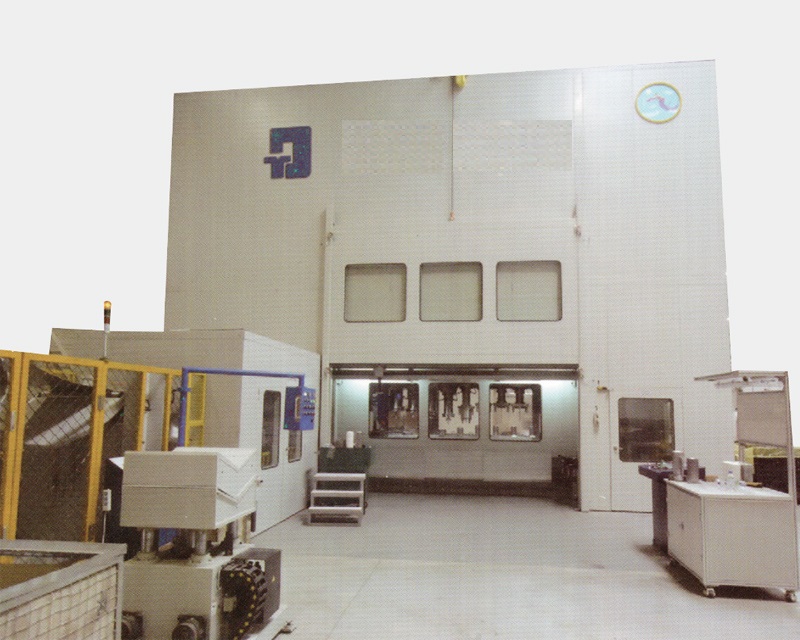

J71 series multi station press machine

·         Product description

This series of multi station presses is a high-efficiency press that can complete multiple processes in one working stroke, such as material feeding, punching, stretching, bending, edge cutting, calibration, etc. Compared with ordinary presses, multi station presses have the advantages of automatic loading and unloading, high material utilization, low energy consumption, high production efficiency, small footprint, and high safety, making them very suitable for large-scale production. The entire body of this series adopts a steel plate welded combined frame structure (the 45 ton series is a steel plate integral welded structure), which is optimized by computer design and finite element analysis to ensure various performance requirements such as strength, stiffness, and accuracy of the body. The main transmission high-speed stage adopts herringbone gear transmission, combined dry pneumatic friction clutch and brake, slider guide adopts six sided straight guide rail guidance, imported hydraulic overload protection device, each workstation is equipped with small sliders, and independent molds can be installed. The mold installation height can be adjusted infinitely, simplifying the mold design. The automatic thin oil circulation lubrication system, feeding manipulator is driven by mechanical or servo, and imported PLC control system. Touchscreen operation is sensitive, safe and reliable. Widely applicable to industries such as bearings, automobiles, military, electronics, micro motors, batteries, instruments, textile machinery, printing iron cans, stationery, etc. According to user ordering requirements, servo driven robotic arms (in both two-dimensional and three-dimensional forms) can be selected for unwinding and leveling devices, photoelectric personal safety protection devices, and shock-absorbing pads.
