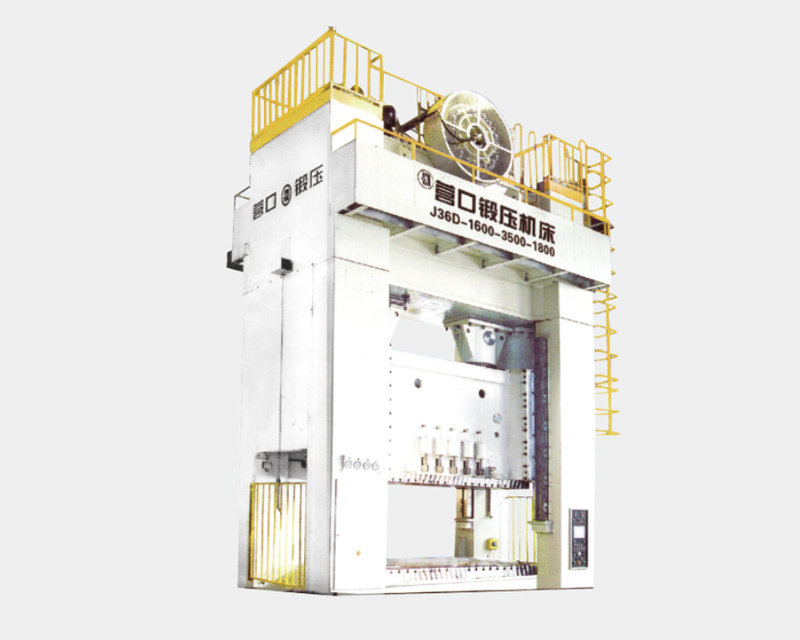

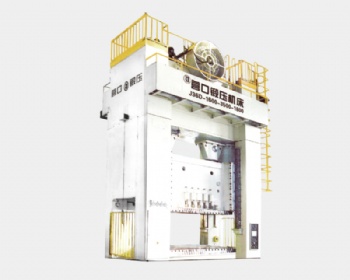

J36 series closed double point press machine

· Product description

This series of press machines is a universal wide table press machine. The body adopts a steel plate welded combined frame structure (J36Z-160 is a steel plate integral welded structure), which adopts computer optimization design and finite element analysis to ensure the strength, stiffness, accuracy and other performance requirements of the body. The main transmission high-speed stage adopts herringbone gear transmission, and the low-speed stage adopts eccentric spur gear opposite direction transmission. The guide column guide sleeve structure, the slider guide adopts eight sided right angle guide rail guidance, and the floating insert type pneumatic friction clutch and brake (J36Z-160, J36-250, J36-400 adopt combined dry pneumatic friction clutch and brake), imported hydraulic overload protection device, automatic thin oil circulation lubrication system, imported PLC control system, touch screen, electronic cam Dual loop control with mechanical cam. It is mainly suitable for processes such as punching, cutting, bending, and shallow stretching of wide format large plates, and is widely used in industries such as automobiles, tractors, aviation, household appliances, motors, locomotives, and ships. According to user ordering requirements, optional air cushions, hydraulic air cushions for stretching, and photoelectric personal safety protection devices can be selected.
